The Definitive Resource on AGM Battery Systems

Introduction

Welcome to the definitive resource on Absorbent Glass Mat (AGM) battery technology. This comprehensive guide provides detailed information on how AGM batteries work, their advantages over conventional batteries, various applications across industries, technical specifications, performance characteristics, and real-world use cases.

AGM batteries represent a significant advancement in lead-acid battery technology, offering superior performance, reliability, and versatility compared to conventional flooded lead-acid batteries. Concorde Battery Corporation, the maker of Lifeline, developed its AGM technology for aircraft in 1985, adapted it for deep-cycle service in 1986, and has supplied marine and RV deep-cycle AGM batteries since 1987. Concorde is now the largest manufacturer of valve-regulated lead-acid batteries for commercial and military aircraft, and AGM has become the preferred choice for numerous demanding applications.

How AGM Battery Technology Works

AGM batteries function through a sophisticated design that sets them apart from traditional lead-acid batteries. At their core is the Absorbent Glass Mat (AGM) separator technology that revolutionizes battery performance.

The Chemical Process

An AGM battery operates through a chemical reaction involving lead, sulfuric acid, and water. When power is drawn, the acid molecules move to the lead plates, leaving water and lead sulfate in the battery. This removal of sulfuric acid initiates a chemical reaction which is reversed during recharging Lifeline Batteries2.

Discharging:

During discharge, the lead dioxide (PbO₂) in the positive plate reacts with the sulfuric acid (H₂SO₄) to form lead sulfate (PbSO₄) and water. Simultaneously, the lead (Pb) in the negative plate also forms lead sulfate.

Charging:

When charging, the process reverses. The lead sulfate on both plates converts back to lead dioxide on the positive plate and pure lead on the negative plate, while the electrolyte becomes more concentrated sulfuric acid again.

Oxygen Recombination:

What makes AGM unique is the oxygen recombination cycle. Oxygen generated at the positive plate travels through the void space in the glass mat to the negative plate, where it reacts with lead to form lead oxide and water. That reaction suppresses the hydrogen that would otherwise be released at the negative plate, so virtually all of the gas is recombined inside the cell, no water is lost, and water never needs to be added.

Advantages of AGM Battery Technology

AGM batteries offer numerous benefits over conventional flooded lead-acid batteries, making them the preferred choice for many applications.

1. Maintenance-Free

AGM batteries never need water. The electrolyte is absorbed in the glass mat separator, so there is no free liquid to spill, and each cell is sealed with a pressure-relief valve. They are not gas-tight: small amounts of hydrogen and oxygen vent during charging, so always install in a ventilated space and never in an airtight enclosure.

2. Vibration Resistant

The glass mat firmly holds the plates in place, making AGM batteries highly resistant to vibration damage, ideal for vehicles and marine applications Lifeline Batteries4.

3. High-Performance

AGM batteries can deliver high currents on demand and offer better cycling capacity than traditional batteries, making them perfect for high-drain applications. The internal resistance of an AGM battery is just a few milliohms — a 100Ah GPL-31T measures about 3.6 mΩ — a fraction of a comparable flooded battery’s.

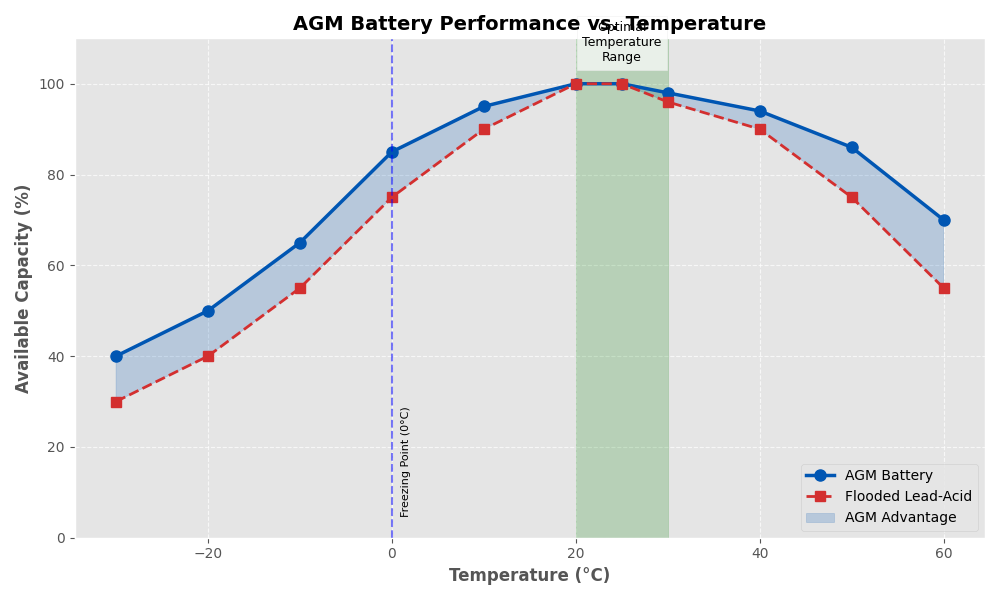

4. Low Temperature Performance

Capacity falls in the cold for every lead-acid chemistry, but Lifeline AGM delivers better low-temperature capacity than gel batteries and, unlike a flooded battery, is resistant to damage if it freezes. Lifeline’s published data shows a battery operating continuously at 0°F (-18°C) delivers about 60% of its room-temperature capacity, with the exact figure depending on discharge rate. Keep the state of charge high in cold climates: a fully charged battery will not freeze until about -94°F (-70°C), while a fully discharged one freezes at about 21°F (-6°C).

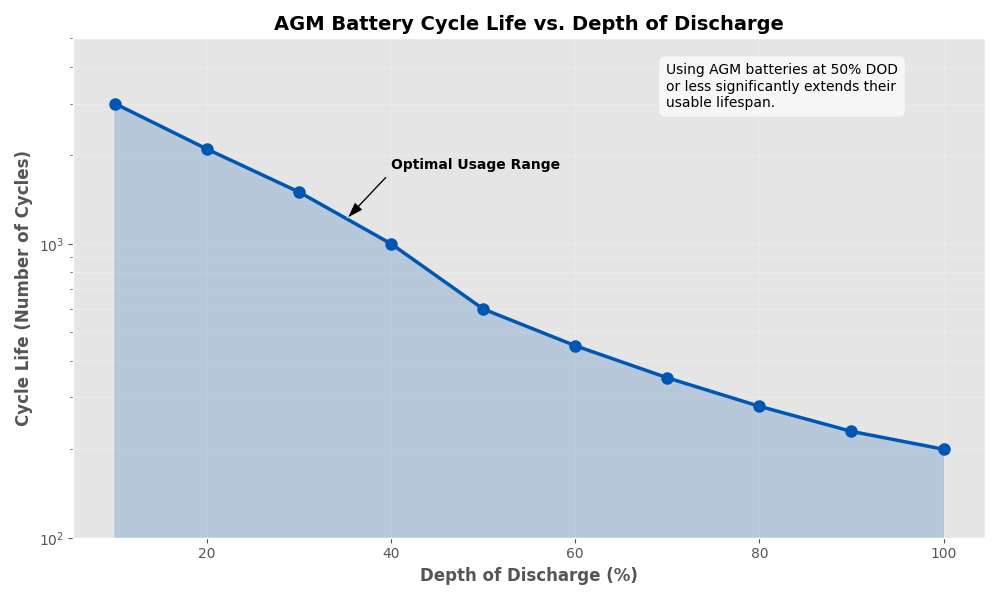

5. Longer Lifespan

Service life depends mainly on depth of discharge and temperature. Lifeline’s published cycle-life data shows roughly 1,000 cycles at 50% depth of discharge and about 550 cycles at 80%, measured to 80% of rated capacity at 25°C, and battery life halves for every 10°C (18°F) rise in battery temperature. Sizing a bank so average depth of discharge stays at or below 50% is the single biggest lever on lifespan.

6. Environmentally Friendly

With the electrolyte held in the glass mat, there is no free acid to leak in normal handling. Lead-acid batteries also have a recycling rate close to 100%: return end-of-life batteries to a local collection center and never discard them in the trash or a landfill.

7. Non-Spillable Design

Unlike flooded batteries, there is no free liquid acid inside: the electrolyte is held in the glass mat, so Lifeline AGM batteries are classified as non-spillable for storage, shipping and handling and will not spill when tilted. Electrolyte exposure is still possible under extreme conditions, such as a cracked-open or crushed case, so treat a damaged battery as an acid hazard. Lifeline specifies installing these batteries upright, with the terminals up; contact Concorde for approval of any other orientation Lifeline Batteries4.

8. Lower Self-Discharge Rate

AGM batteries have a self-discharge rate of only 1-3% per month at room temperature, and it stays stable over the life of the battery. A new flooded battery loses 5-10% per month, and the rate rises sharply with age as antimony contaminates the negative plate.

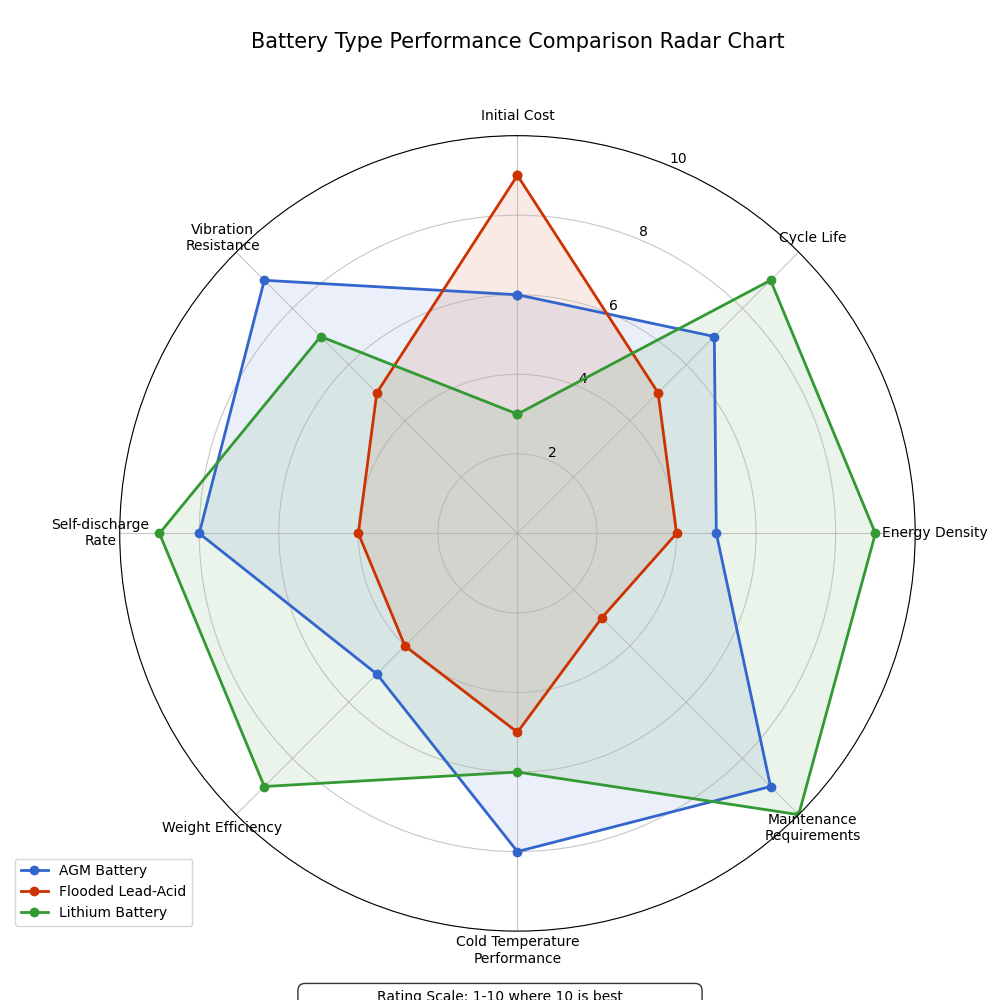

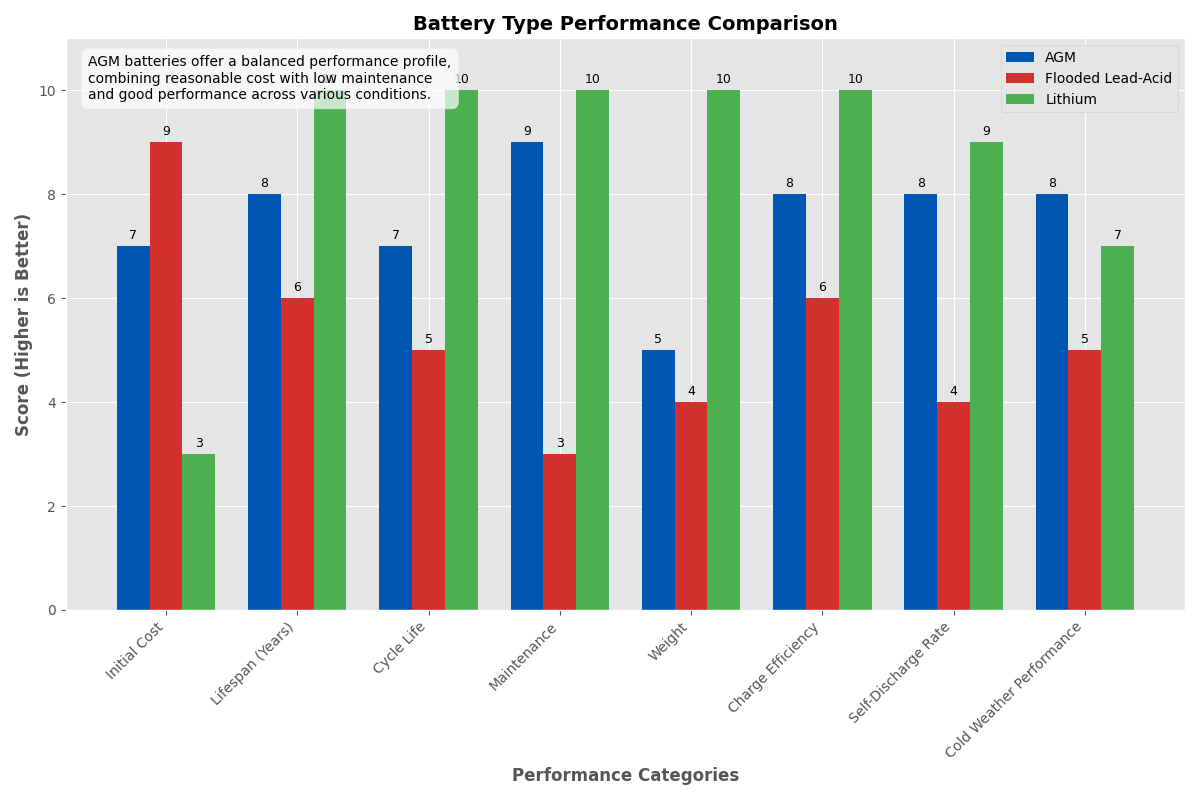

AGM vs. Conventional Batteries Comparison

Applications Across Industries

AGM batteries power critical systems across numerous sectors. Each industry leverages different aspects of AGM technology to meet specific needs.

Automotive

AGM batteries are becoming standard in modern vehicles with start-stop systems, sophisticated electronics, and high electrical demands.

• Start-stop technology vehicles
• Luxury cars with high electrical loads
• Performance vehicles
• Commercial fleets

Marine & RV

The vibration resistance and maintenance-free operation make AGM batteries ideal for boats, yachts, and recreational vehicles Lifeline Batteries9.

• Starting and house batteries for boats
• RVs and campers
• Trolling motors
• Marine electronics

Renewable Energy

AGM batteries are extensively used in solar and wind energy storage systems due to their cycling capabilities and low maintenance.

• Off-grid solar systems
• Residential energy storage
• Small-scale wind power
• Hybrid energy systems

UPS & Backup Power

Critical infrastructure relies on AGM batteries for uninterruptible power supply and emergency backup systems.

• Data centers
• Telecommunications
• Medical equipment
• Emergency lighting systems

Golf Carts & Mobility

The deep cycling capabilities and maintenance-free nature make AGM batteries perfect for electric vehicles and mobility aids.

• Golf carts
• Electric wheelchairs
• Mobility scooters
• Floor cleaning machines

Military & Aerospace

AGM batteries meet rigorous standards for reliability in critical military and aerospace applications Concorde Battery Corporation12.

• Military vehicles and equipment
• Aircraft backup systems
• Portable field equipment
• Remote installations

Technical Specifications & Performance

 Key Technical Specifications

 Voltage Parameters

• Nominal Voltage: 2.0V per cell (12V for six-cell battery)
• Float Voltage: 2.22V per cell (13.3 ± 0.1V for 12V battery, at 77°F/25°C)
• Absorption Charge Voltage: 2.38V per cell (14.3 ± 0.1V for 12V battery, at 77°F)
• Charging Current: minimum 0.2C recommended for deep cycling; tolerates in-rush as high as 5C

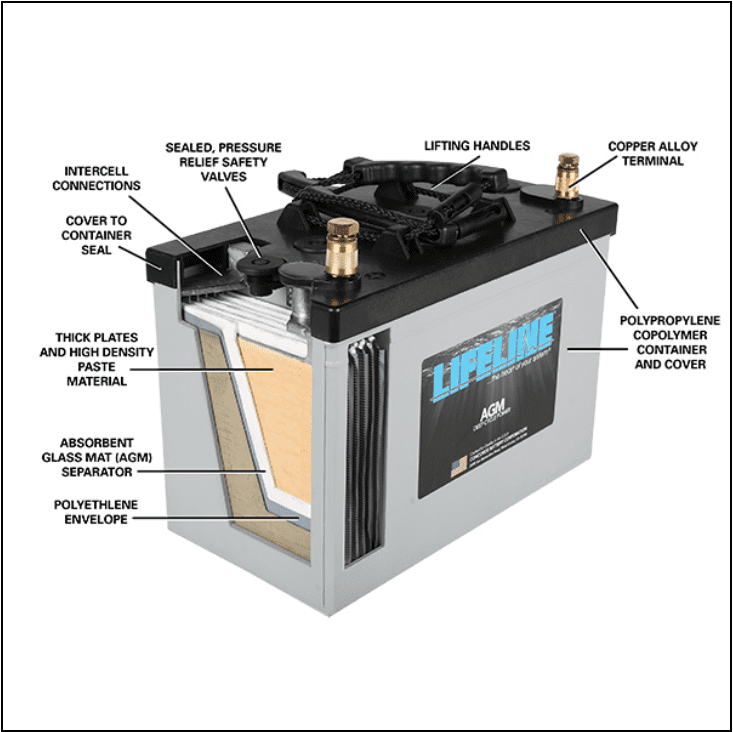

Physical Characteristics

• Positive grids: typically 0.095″ or thicker, with plates 0.105″ or thicker (other AGM grids are typically 0.045-0.060″)
• Separator: premium glass micro-fiber mat, over 90% saturated with electrolyte, with a microporous polyethylene envelope around each positive plate
• Terminals: copper alloy, low resistance, no exposed lead
• Container: thick-wall polypropylene copolymer with an epoxy-sealed cover
• Internal Resistance: a few milliohms (about 3.6 mΩ for a 100Ah GPL-31T)
• Self-Discharge Rate: 1-3% per month at room temperature, stable over life

Environmental Parameters

• Operating Temperature: -40°F to 160°F (-40°C to 71°C)
• Temperature and life: battery life halves for every 10°C (18°F) rise in battery temperature; store at or below 68°F (20°C)
• Storage Temperature: -67°F to 122°F (-55°C to 50°C)

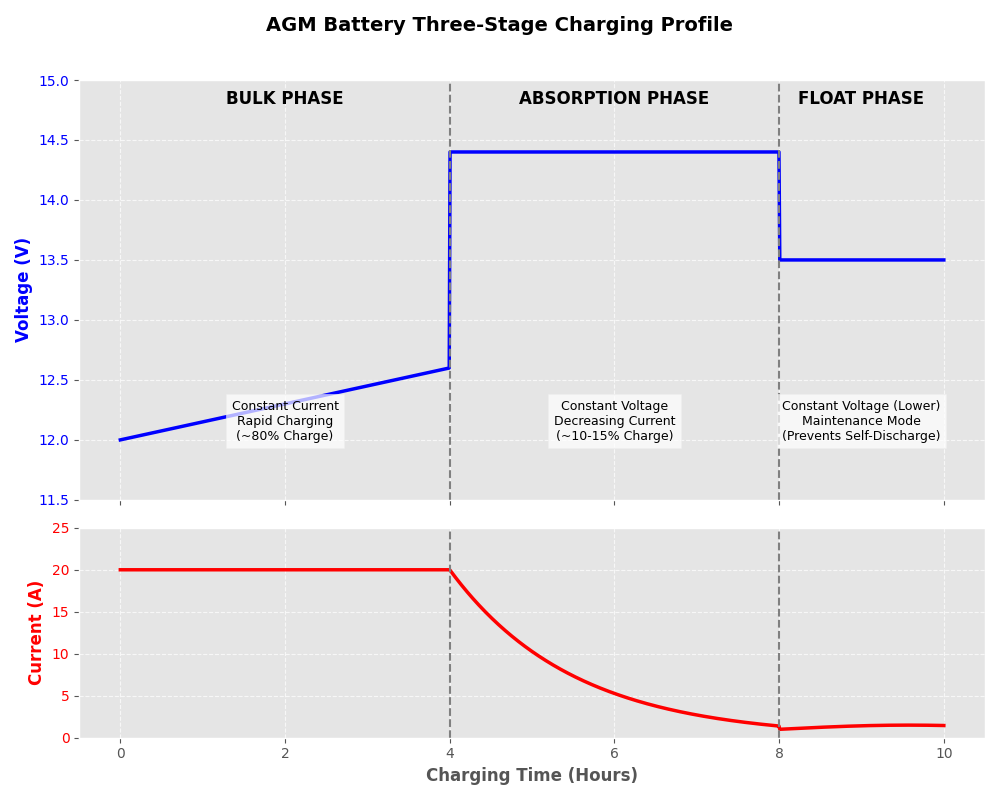

Charging Profiles

AGM batteries require specific charging profiles to maximize performance and longevity. Lifeline recommends a three-stage charger with temperature compensation. The voltages below apply at a battery temperature of 77°F (25°C) and must be adjusted by 0.0022V per cell per °F (0.013V per °F for a 12V battery) at other temperatures; there is no single fixed voltage that works across a wide temperature range.

1. Bulk Stage: Constant current, set as high as the charger allows (Lifeline batteries tolerate in-rush up to 5C; use at least 0.2C for repetitive deep cycling), until the battery reaches absorption voltage
2. Absorption Stage: Constant voltage (14.3 ± 0.1V for 12V batteries, at 77°F/25°C) until charging current falls below 0.5% of rated capacity (0.5A for a 100Ah battery), typically 2-4 hours
3. Float Stage: Reduced voltage (13.3 ± 0.1V for 12V batteries, at 77°F/25°C) to maintain full charge and compensate for self-discharge

Common Battery Sizes & Specifications

Real-World Use Cases

Lifeline’s customer stories are filmed. Watch two of them:

Giant RV — Case Study

Watch the Giant RV case study (video, 1:46)

San Diego Marine Exchange — Case Study

Watch the San Diego Marine Exchange case study (video, 1:59)

More customer and Tech Talk videos are on the Lifeline videos page.

Frequently Asked Questions

How long do AGM batteries typically last?

It depends mainly on depth of discharge and temperature. Lifeline’s published cycle-life curve shows roughly 1,000 cycles at 50% depth of discharge, about 550 cycles at 80%, and about 350 at 100%, measured to 80% of rated capacity at 25°C. Life halves for every 10°C (18°F) rise in battery temperature, and chronic undercharging shortens it further through sulfation. Size the bank so average depth of discharge stays at or below 50%.

Can I use a regular battery charger with AGM batteries?

Use a three-stage charger (bulk, absorption, float) with temperature compensation, set to Lifeline’s voltages: 14.3 ± 0.1V absorption and 13.3 ± 0.1V float at 77°F for a 12V battery. Lifeline’s technical manual is explicit that no single fixed voltage works across a wide temperature range and that batteries charged that way fail prematurely. A charger without temperature compensation, or one set to the wrong voltages, will shorten battery life.

Are AGM batteries worth the higher cost?

AGM batteries cost more up front than conventional flooded lead-acid batteries, but offer several advantages that can make them more economical in the long run: longer lifespan, zero maintenance, better reliability, superior performance in extreme conditions, and enhanced safety. For applications where reliability is critical or where maintenance is difficult, the additional cost is usually justified.

How should Lifeline AGM batteries be mounted?

Lifeline specifies upright installation, with the terminals up. Because the electrolyte is absorbed into the glass mat rather than free-flowing, there is no acid spillage risk, which makes AGM batteries well suited to space-constrained installations. For any other mounting orientation, contact Concorde for approval Lifeline Batteries4.

How should AGM batteries be stored?

AGM batteries should be stored in a cool, dry place, ideally below 68°F (20°C). They should be given a boost charge every 90 days, or whenever the open-circuit voltage drops to 12.5V (about 75% state of charge), using a constant-voltage charger set to 14.4-15.0V for a 12V battery until the current falls below 0.5% of rated capacity. For warranty coverage, batteries must be boost-charged in storage and installed within 12 months of the factory ship date. Storing a battery in a discharged state can lead to sulfation and permanent capacity loss. Source: Lifeline Technical Manual, Doc 6-0101 Rev G.

Can I mix AGM batteries with traditional batteries?

No. Lifeline’s guidance is to use batteries of the same model, size and condition throughout a bank, never to mix models or sizes within a series string, and to replace the whole set together so it stays balanced. Flooded batteries also need different charging voltages than Lifeline AGM, so a mixed bank cannot be charged correctly for both.

Conclusion

AGM battery technology represents a significant advancement in the field of energy storage, offering superior performance, reliability, and versatility compared to traditional lead-acid batteries. Their maintenance-free operation, excellent vibration resistance, long cycle life, and ability to perform in extreme conditions make them the ideal choice for a wide range of applications across marine, automotive, renewable energy, backup power, and mobility sectors.

While AGM batteries require a higher initial investment than conventional batteries, their longer lifespan, reduced maintenance requirements, and superior performance deliver a lower total cost of ownership in most applications. As technology continues to advance and manufacturing scales increase, AGM batteries are becoming more affordable and accessible to a broader range of users.

By understanding the principles, specifications, and best practices for AGM battery usage outlined in this definitive resource, you can make informed decisions about implementing this powerful technology in your specific applications.
